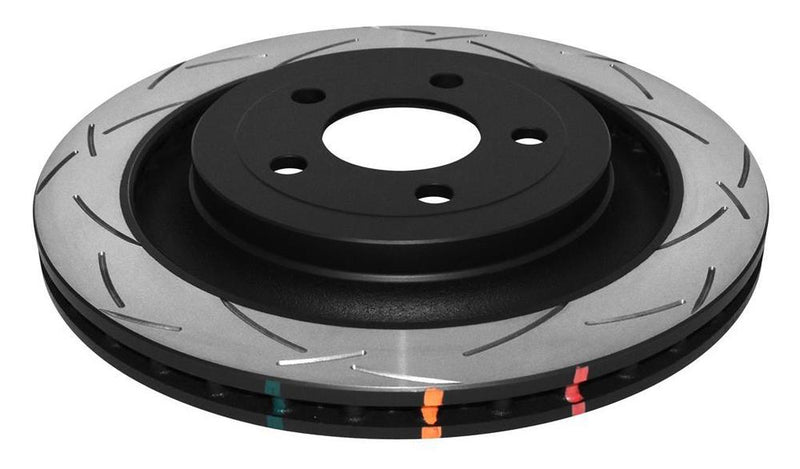

DBA T3 S550 MUSTANG BRAKE DISCS - REAR
DBA Offer a great slotted brake disc solution at a great price.
These are not full floating 2 piece discs like the DBA 2 Piece slotted disks, or the fully floating 2 piece offering from Steeda and Girodisc offerings but offer a great upgrade to your braking performance and styling.
Front and rear discs are available and feature DBA's Kangaroo Paw internal thermal cooling structure and cool slotted pattern.
| T3 Slot 48 precision CNC machined slots' | Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |

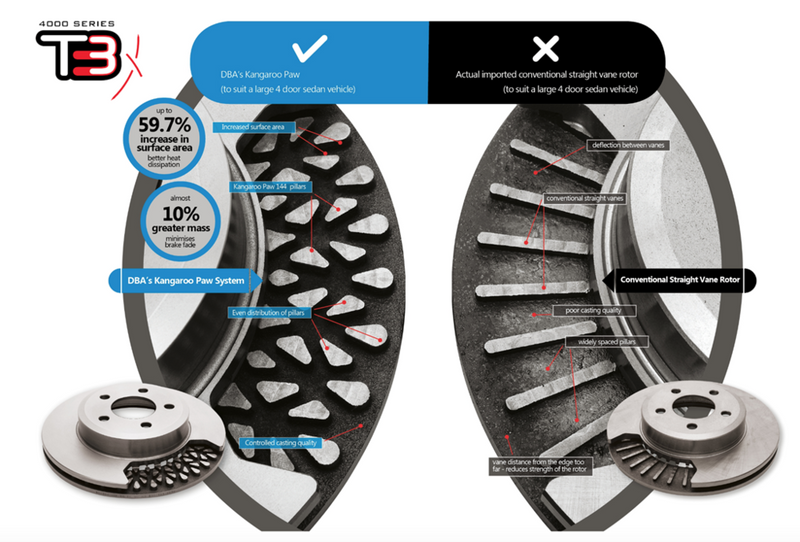

| Kangaroo Paw – 144 diamond and tear drop pillar ventilation system | Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
| XG150 High Carbon Alloyed Iron | An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
| Thermal Stability Profiling | Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
| Thermographic Temperature Monitoring | Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
| Paint protection on non-friction areas | Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
SPECS:
T3 3000 Front Disc
Diameter [mm] 380Inner Diameter [mm]: 71.00
Min. Thickness [mm]: 23
Thickness [mm]: 25
Disc Vent: Kangaroo Paw
Height [mm]: 43.70
Whats the Difference Between T2 & T3 Spec?
T3 Slot Design Offers the additional benefits over the T2 Slot Design
• XG150 High Carbon Alloyed Iron increases the thermal capacity properties of the rotor over the T2 material
• Tri-Symmetrical T3 Slot design dampens the vibration harmonics resulting in a quieter, responsive and a further improvement of brake pedal feel when compared to the T2 slot design. The T3 slots also provide rapid brake recovery after exiting water crossings.
• TSP (Thermal Stability Profiling) prolongs the service life of the rotor. This process is only applied to HEAVY DUTY, T3 4X4 and CLUBSPEC rotors containing XG-150 high carbon alloyed iron.
